Handheld Ultrasonic Flow Meter

MODEL: UFC250H

CBRO handheld ultrasonic flow meter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipeline to complete the flow measurement. It has the characteristics of small size. Convenient carrying and accurate measurement. Handheld Ultrasonic Flow meter Principle Working: Time-transit measurement principle is adopted, the signal transmitted by one flow meter transducer passes through the pipe wall, the medium, the second transducer also transmits the signal received by the first transducer. The influence of the medium flow rate, there is a time difference, flow value Q can be obtained.

Contact us

Application

Handheld Ultrasonic Flow Meter Applications
This flow meter is widely used in tap water, heating, water conservancy, metallurgy chemical,machinery, energy and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging,heating network balance debugging,energy-saving monitoring, and it is a necessary tool and meter for timely flow detection.

Water Treatment

Food Industry

Pharmaceutical Industry

Petrochemical

Paper Industry

Chemical Monitoring

Metallurgical Industry

Public Drainage

Coal Industry

Technical Specifications

Parameters	Specifications
	Transmitter
Make	CBRO
Model	UFC250H
Power supply	3 AAA NiMH built-in battery (12 hours of operation) & 100-240 V AC for the charger
Velocity	±12 m/sec. Bidirectional
Display	4 lines, 16 characters, LCD with backlight, flow rate, velocity, totaliser
Units	User configurable English/Metric
Totaliser	FWD, NET, REV, BATCH (Gallons, ft3, barrels, lbs, m3)
Output	RS 232
Accuracy	±1% of reading @ rate > 0.5 m/sec. (Optional ±0.5% of reading)
Repeatability	0.2% of Span
Protection class	IP 54
Dimensions	204x90x30 mm
Weight	< 0.5 kg
Security	Keypad lockout, access code enabled
	Sensor
Suited temp. – Std.	-40oC to 120oC
Suited temp. – High	-40oC to 250oC
Pipe sizeS Sensor M Sensor L Sensor	15 – 80 mm 50 – 700 mm 400 – 4570 mm
DimensionsS Sensor M Sensor L Sensor	45x30x30 mm 60x45x45 mm 80x70x55 mm
WeightS Sensor M Sensor L Sensor	< 0.3 kg < 0.5 kg < 1.0 kg
Protection class	IP 65, IP 67, IP 68
Cable length	6 m std. can be extended up to 25 m
Flexible belts	SS belt according to pipe size
Portable case	Size – 463x383x103 mm

Installation

Handheld ultrasonic flow meter installation requirements
The state of the pipeline for measuring the flow will greatly affect the measurement accuracy, the detector installation location should be selected in a place that meets the following conditions:

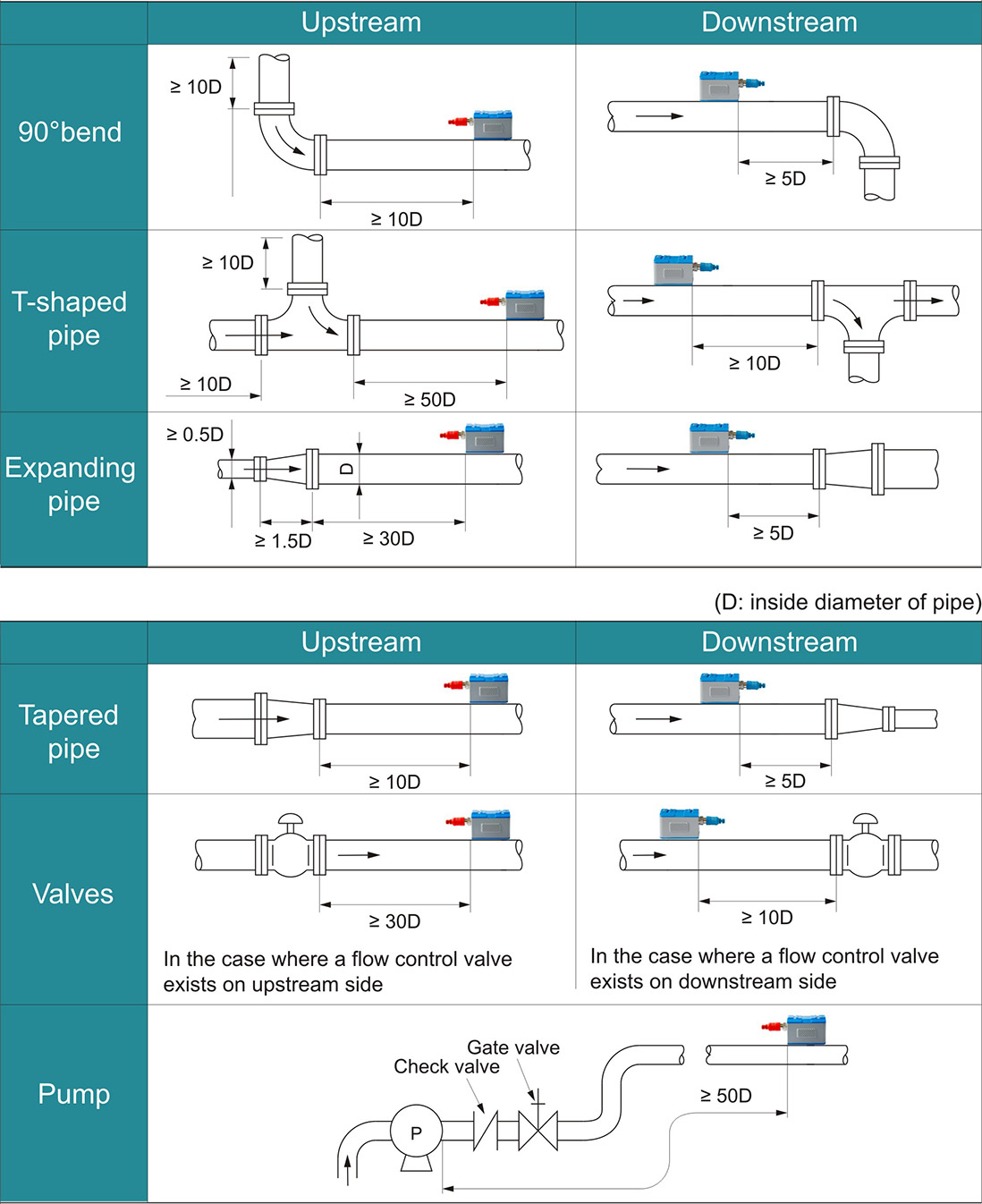

1. It must be ensured that the straight pipe section where the probe is installed is: 10D on the upstream side(D is the pipe diameter), 5D or more on the downstream side, and there must be no factors that disturb the fluid(such as pumps,valves, throttles, etc.) in the 30D on the upstream side. And try to avoid the unevenness and welding position of the pipeline under test.
2. The pipeline is always full of liquid, and the fluid should not contain bubbles or other foreign objects. For horizontal pipelines, install the detector within ±45°of the horizontal centerline. Try to choose the horizontal centerline position.
3. When install the ultrasonic flow meter, need to input these parameters: pipe material,pipe wall thickness and pipe diameter. Fulid type, whether it contains impurities,bubbles, and whether the tube is full.

Transducers installation

1. V-method Installation
V-method installation is the most widely used mode for daily measurement with pipe inner diameters ranging from DN15mm ~ DN200mm. It is also called reflective mode or method.

2. Z-method Installation
Z-method is commonly used when the pipe diameter is above DN300mm.
